1602 Display LCD Modulo 16x2 Caratteri Modulo LCD Retroilluminato RGB 16M Colori, Compatibile 3.3V/5V, Bus I2C, per Raspberry Pi/Pi Pico, Jetson Nano, Arduino
Product Specification
Marchio: Waveshare
Tecnologia di connettività: I2C
Componenti inclusi: PH2.0 4PIN wire
Standard di comunicazione wireless: Bluetooth

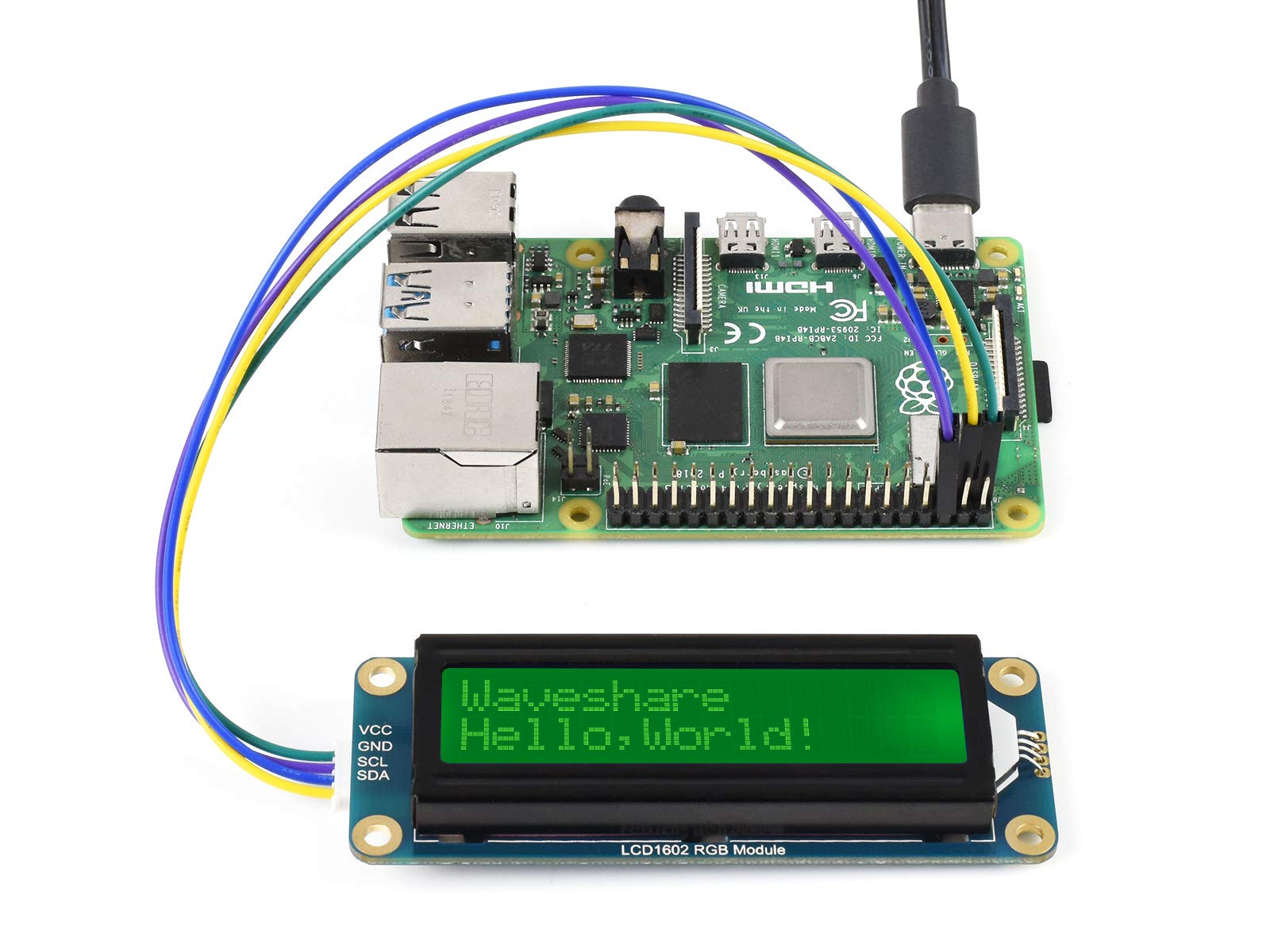

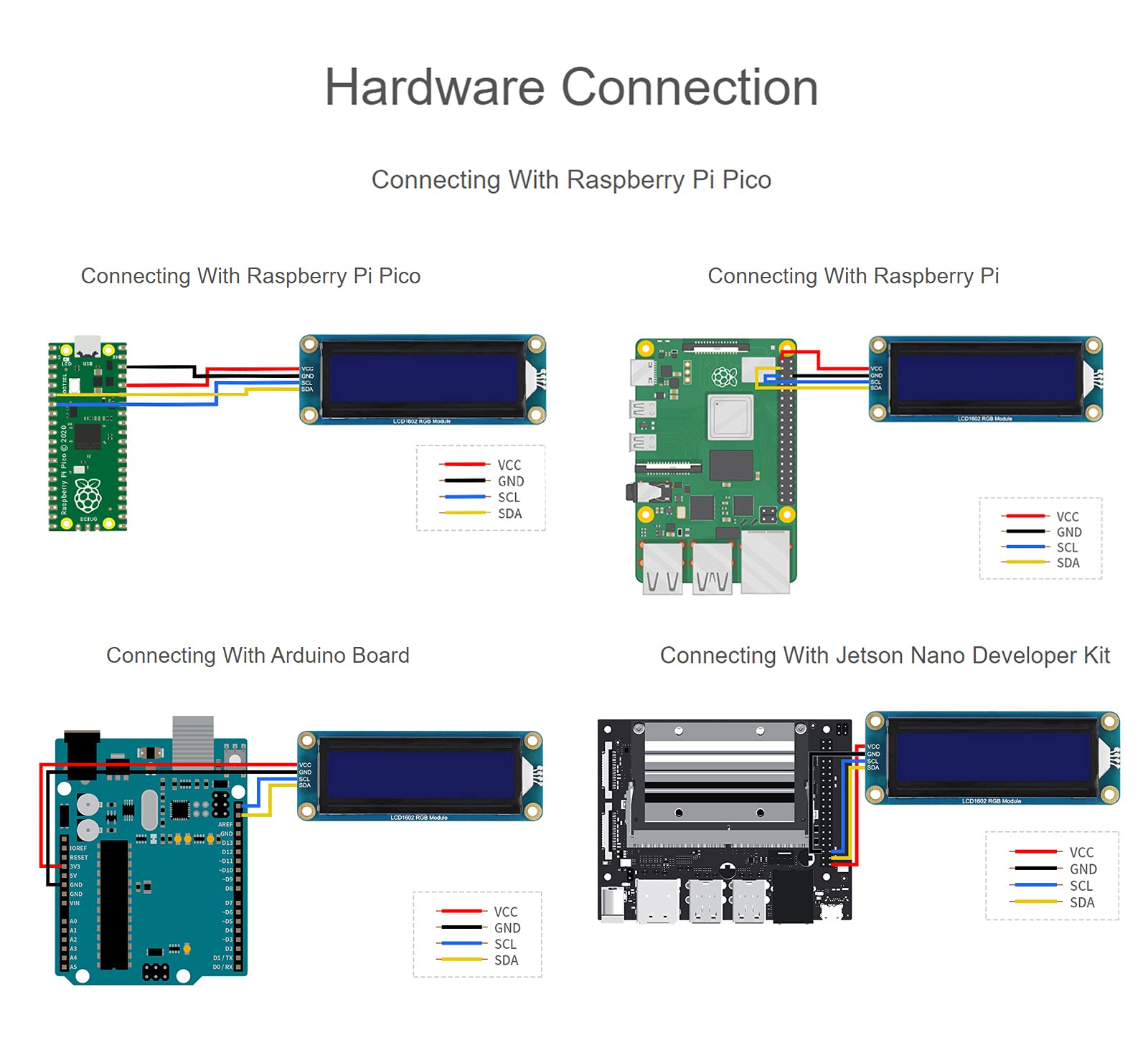

Dispositivi compatibili: Raspberry Pi, Pi Pico, Jetson Nano, Arduino

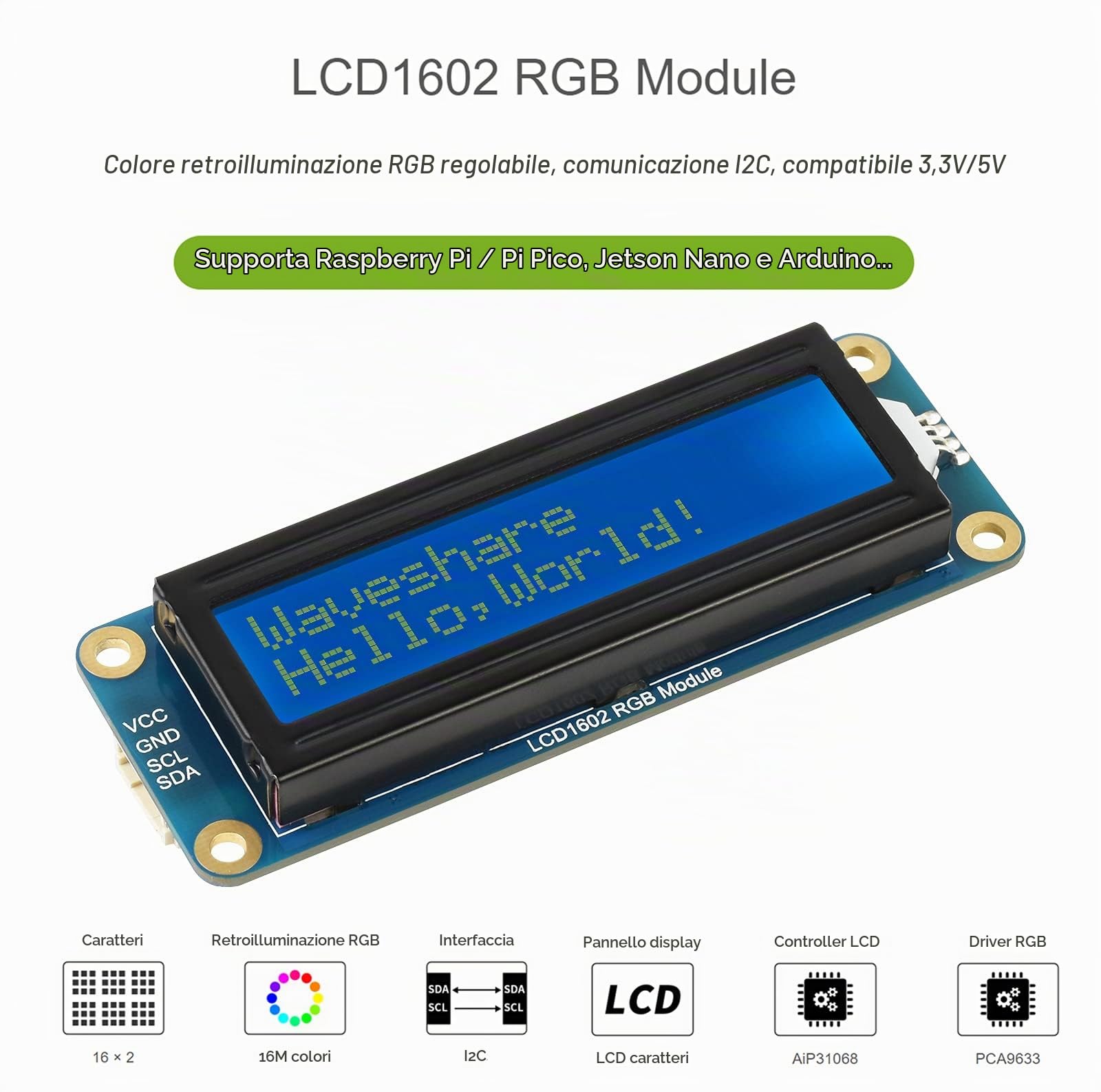

- 【LCD1602 RGB Module】Incorporates character LCD panel LCD1602, onboard AiP31068L LCD driver chip and PCA9633 RGB control chip, supports Raspberry Pi / Pi Pico, Jetson Nano, and Arduino
- 【16x2 Characters 1602 LCD】Incorporates character LCD panel LCD1602, can display up to 16 X 2 characters, support screen scrolling, cursor movement and other functions

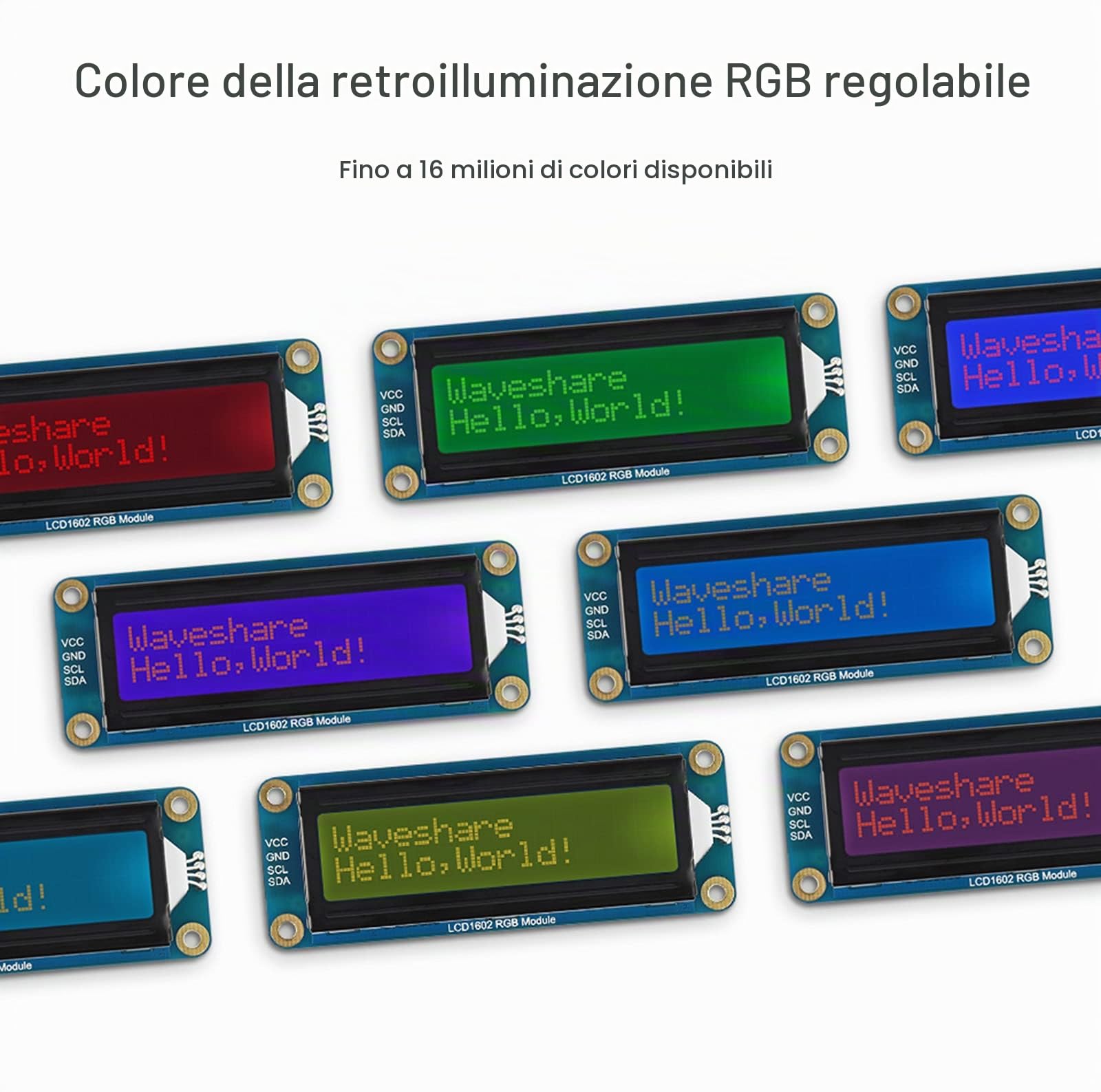

- 【Adjustable RGB Backlight Color】Up to 16M (2563) backlight colors available

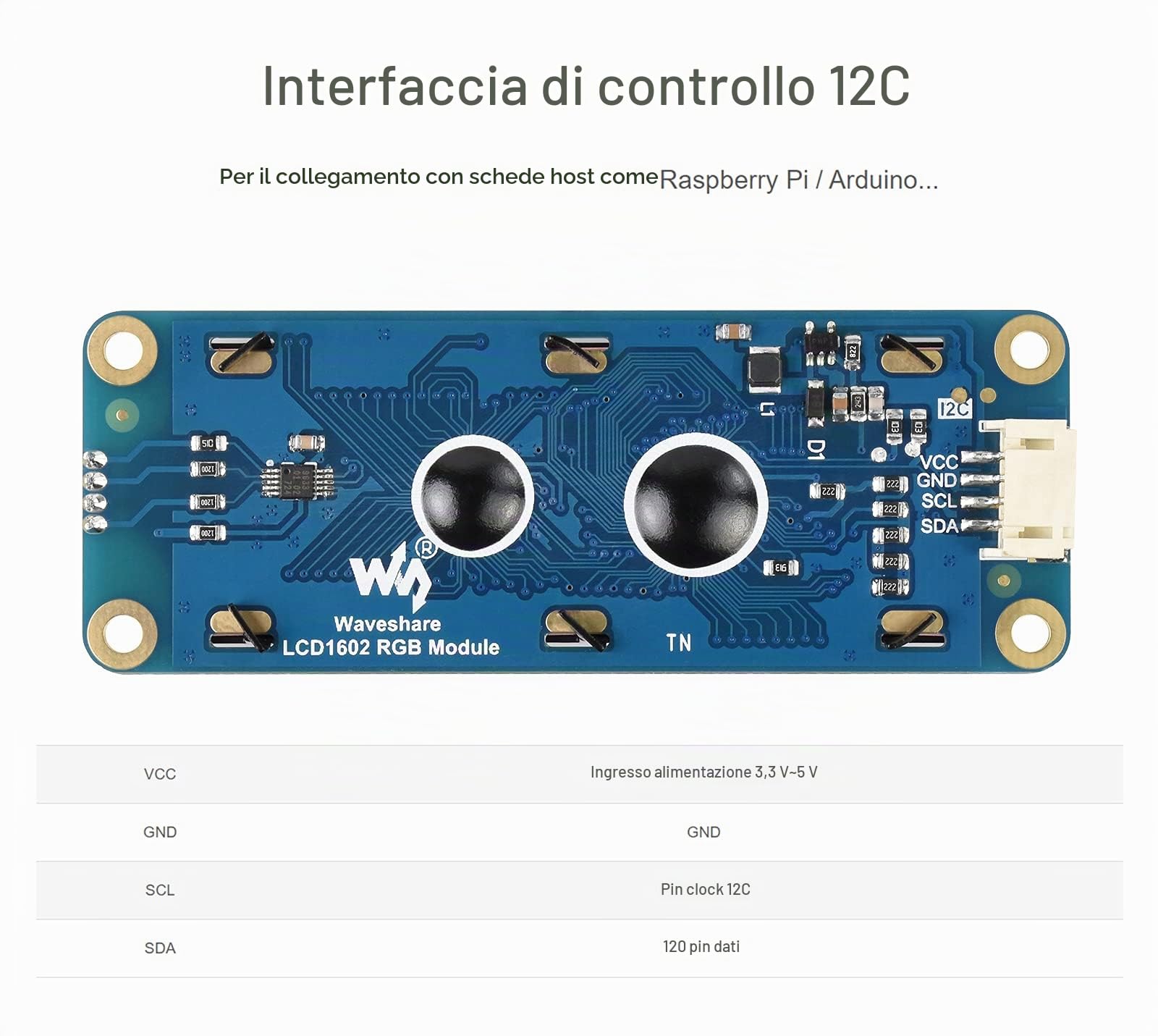

- 【I2C Control Interface】Only two signal pins are required, saving the IO resource, for connecting with host boards like Raspberry Pi / Arduino

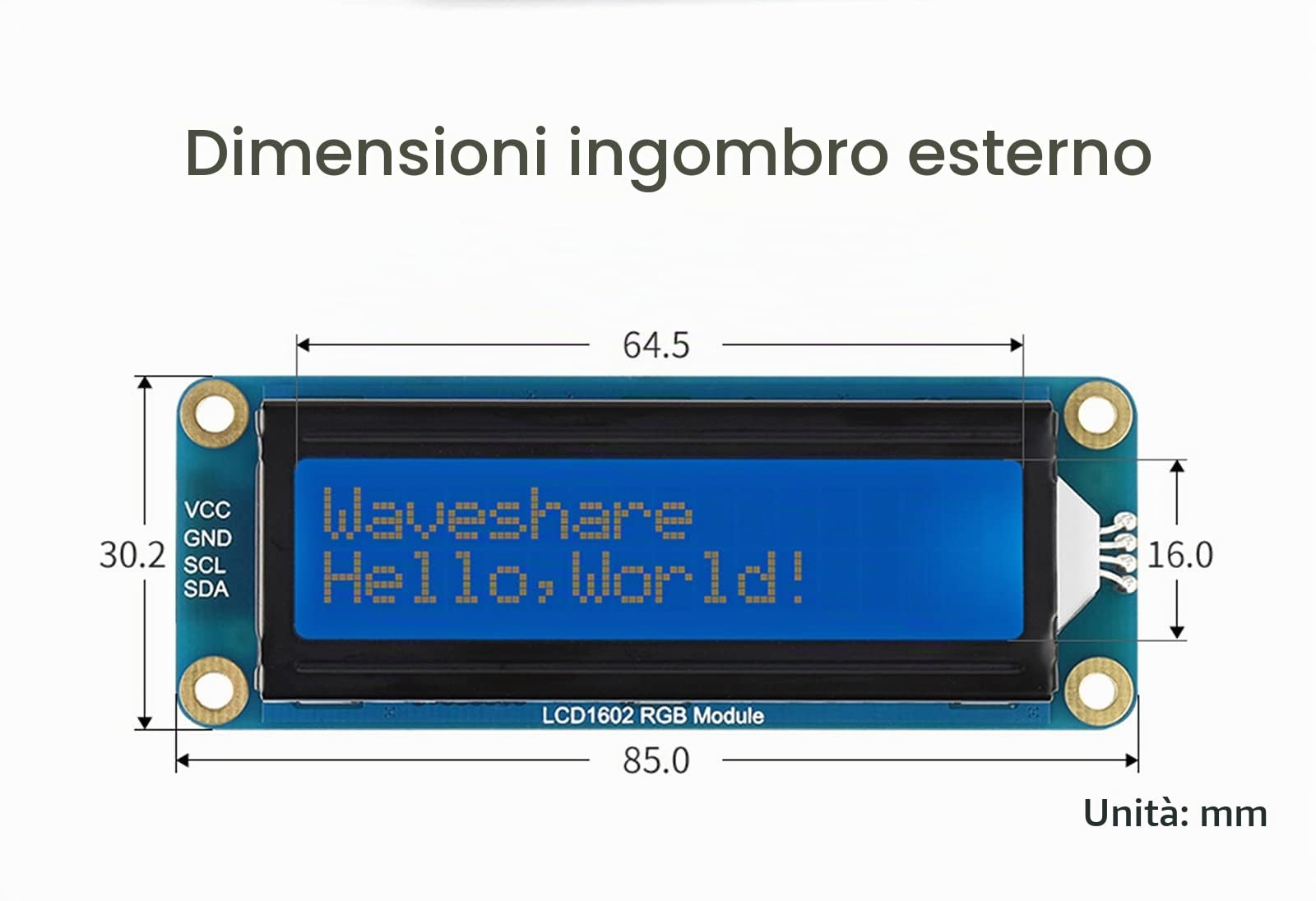

- 【3.3V/5V Compatible】Compatible with 3.3V/5V operating voltage, Dimension: 87.0 × 32.0 × 13.0mm
