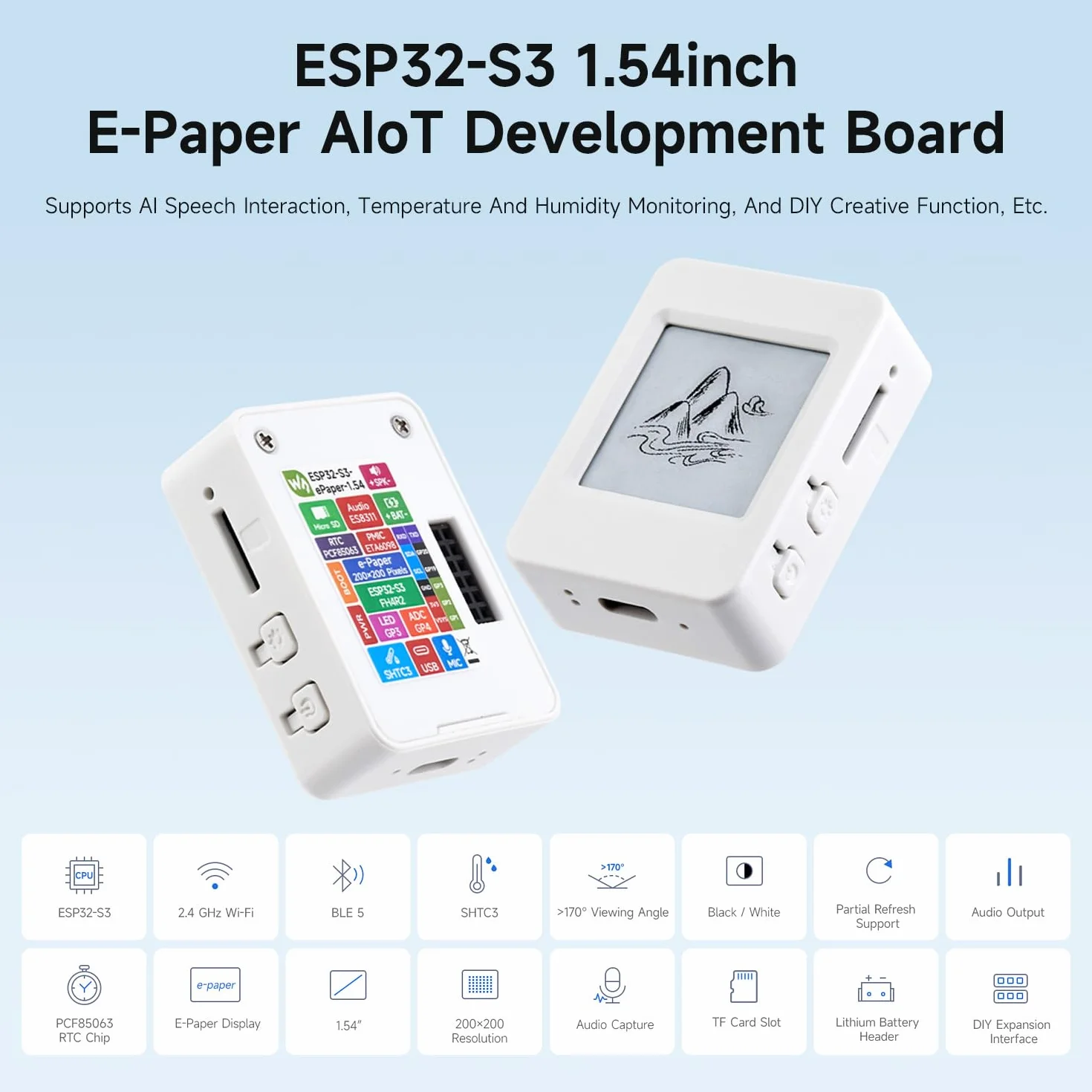

Waveshare ESP32-S3 1.54inch E-Paper AIoT Development Board, 200x200, Black/White, Supports Wi-Fi And BLE Dual-Mode Communication, without batt

Marchio: Waveshare
Capacità della memoria: 384 KB
Velocità CPU: 240 MHz
Tecnologia di connettività: Bluetooth, Wi-Fi
Dispositivi compatibili: Smartphone, computer, microcontrollori

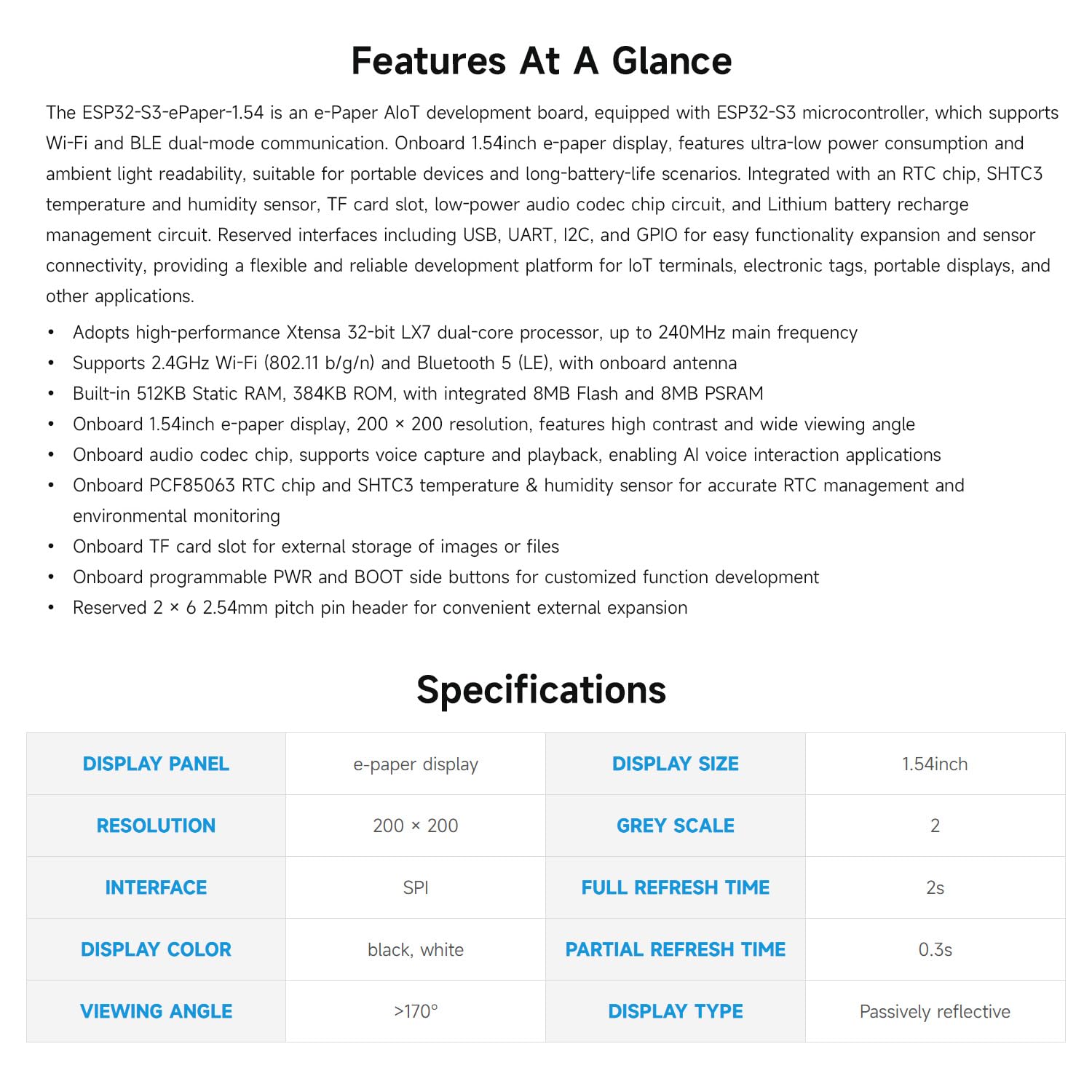

- ESP32-S3-ePaper-1.54-EN, without MX1.25 3.7V Li batt. Adopts high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and BT 5 (LE), with onboard antenna
- Built-in 512KB Static RAM, 384KB ROM, with integrated Flash and PStatic RAM. Onboard 1.54inch e-paper display, 200x200 resolution, features high contrast and wide viewing angle

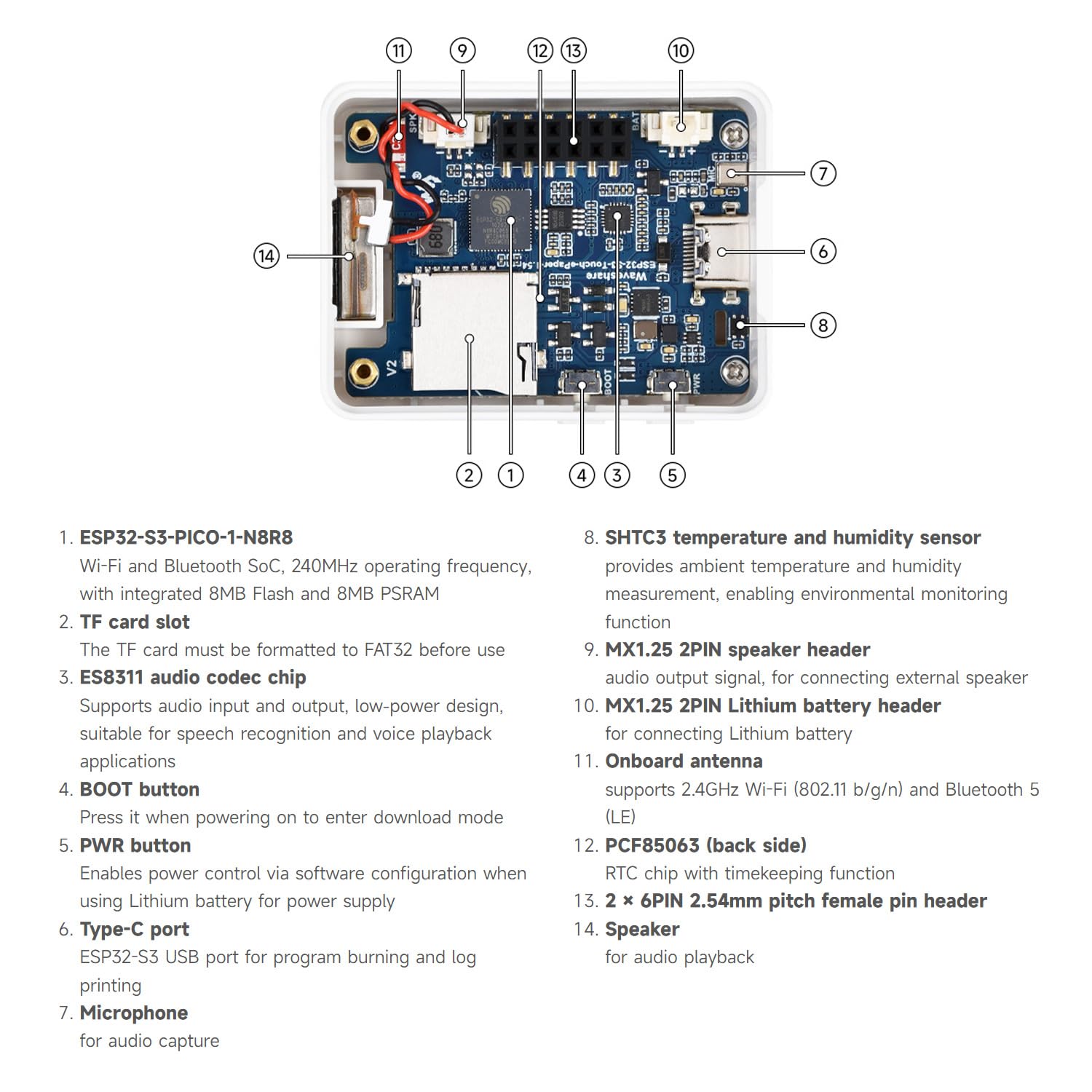

- Onboard audio codec chip, supports voice capture and playback, enabling AI voice interaction applications. Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring
- Onboard TF card slot for external storage of images or files. Onboard programmable PWR and BOOT side buttons for customized function development
- Reserved 2x6 2.54mm pitch pin header for convenient external expansion
