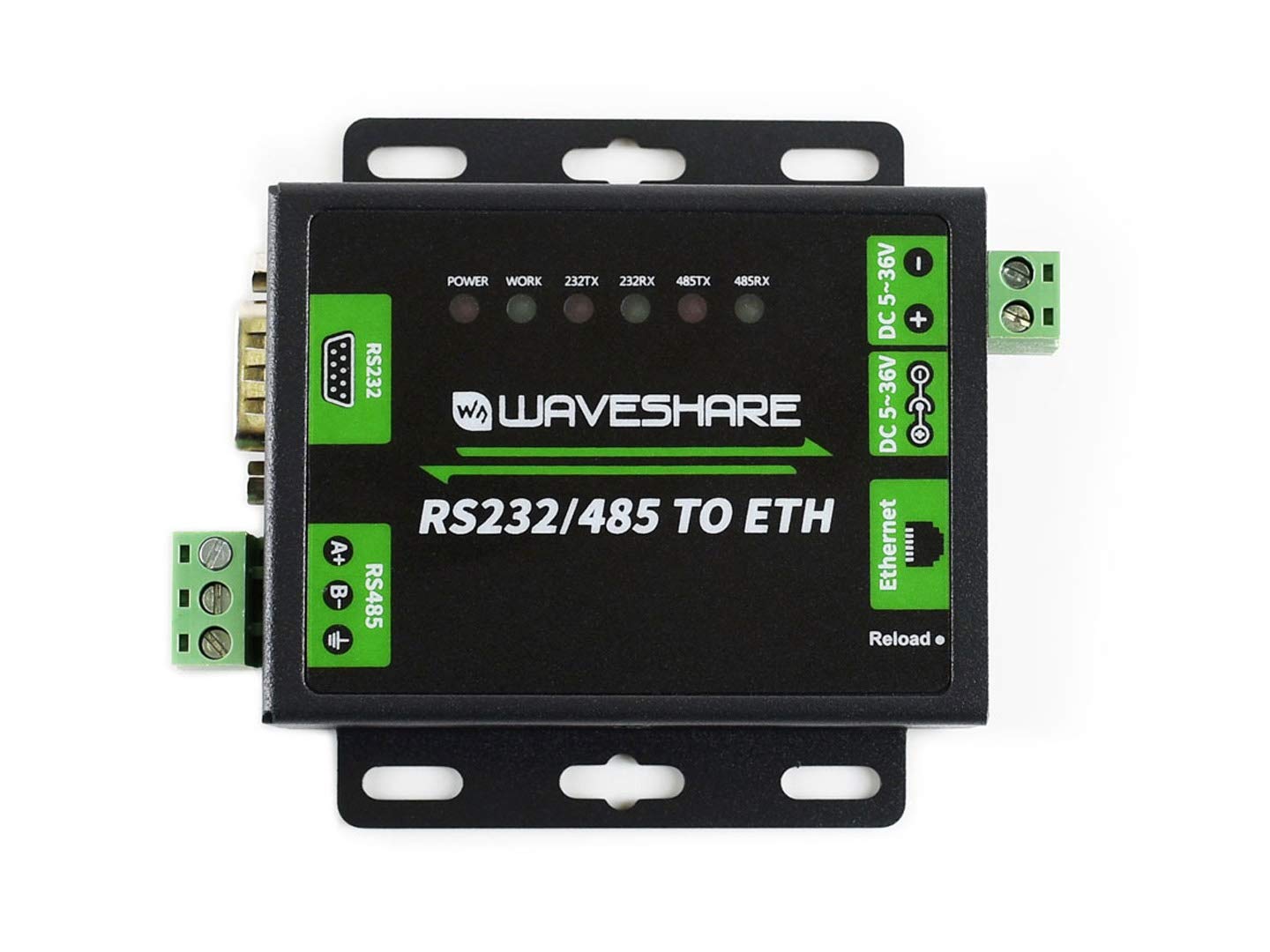

Waveshare Industrial Converter RS232 or RS485 to Ethernet Enables Bi-Directional Transparent Data Transmission

Dispositivi compatibili: Computer fisso
Marchio: Waveshare
Quantità di articoli nella confezione: 1
Produttore: Waveshare

- This industrial RS232/RS485 to Ethernet converter supports Websocket, enables bi-directional transparent data transmission with RS232/RS485 port via webpage directly, and also can be configured via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software.
- M4 series 32-bit ARM processor with up to 120MHz frequency, fast speed, stable and reliable. 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable. Both RS232 and RS485 interface, allow to work independently at the same time without interfering each other.
- Configurable baudrate (600bps~230.4Kbps), supports five parity check options (None/Odd/Even/Mark/Space). Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST). Multi indicators to monitor communication and work status.
- Supports Modbus, suit for industrial application. Supports customized heartbeat packets, registration packets, webpage. Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change.
- Firmware is upgradable via the network. Restore to factory settings via software and/or hardware. Comes with default MAC address, which is customizable. Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software.
